Large FOV One-Button Precise Video Measuring Machine
Describing

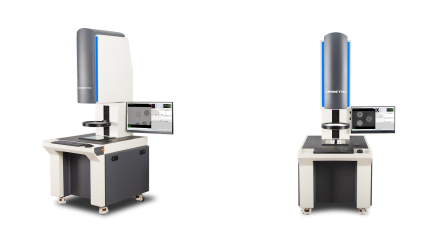

AVANT 190 image dimension measurement instrument is a new type of image measurement technology from UNIMETRO. It is different from the traditional 2D vision measurement instrument, it no longer needs a linear scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a large focal length lens to ensure measurement accuracy.
Parameters
| Product Name |
Large FOV One-Button Precise Video Measuring Machine
|
|
| Model |
AVANT190
|
|
| Image sensor |
20MP HD color digital camera
|
|
| External display |
24'
|
|
| Light receiving lens |
Single/double telecentric lens
|
|
| Illumination |
Drop shot system
|
Single zone ring directional lighting (white light)
|
|
| Transmission |
Parallel transmission illumination (white light)
|
|
|
Broad Vision(mm)
|
195*130mm
|
|
Repeatability
|
Broad vision
|
±3(Coordinate table not moving)
|
|
Measurement Software
|
INS/F
|
|
Display resolution
|
0.1um
|
|
Z-direction electric coordinate table
|
Moving range
|
100mm
|
|
Dimension
|
812*964*1076mm
|
|
Weight
|
530KG
|
|
Power Supply
|
110-240VAC,50/60HZ
|
Features
Fast & efficient:
1) The product can be placed arbitrarily without additional fixtures to fix and position.
2 Fast measurement, up to 512 locations can be measured at the same time.
3 To make batch measurement more efficient, batch measurement can be carried out quickly and accurately in CNC mode.
Accurate & consistent:
1) With just one button, anyone can easily obtain accurate and consistent measurement results.
2) Software auto focus, no deviation caused by focus adjustment.
3) Automatically identify the measurement location, obtain uniform and stable measurement results.
Easy to operate:
1) Anyone can get started quickly, saving manual training time and improving work efficiency.
2) Simple operation interface, the operator can quickly find the corresponding function and measure it.
3) Virtual lines and virtual points can be created to meet more measurement requirements.
Application
Plastic parts
Electronic parts
Gear parts
Rubber parts
Metal parts
Bearing
Stamping molds
Phone parts
etc.
